Working principle and use:
JSU-873 electromagnetic counter products are distributed all over the country and exported to countries around the world, and are widely used in recording the number of electrical signals.
Accumulate and count the electricity of various industries such as currency counting machine counting, machine tool stroke flow, printing, food, clothing machinery, etc.
Pulse count integration:
|
Counting range |
0-999999 |
|
Voltage type |
DC12V, DC24V, AC220V |
|
Voltage fluctuation range |
±10% |
|
Counting speed |
DC20 times/sec, AC10 times/sec |
|
Indication error |
<1X0.00001 |
|
Ambient temperature |
-20℃~50℃ Relative temperature: ≤85% |
|
power |
DC1.5W, AC2.5VA |
|
Return to zero |
Press to return to zero |
|

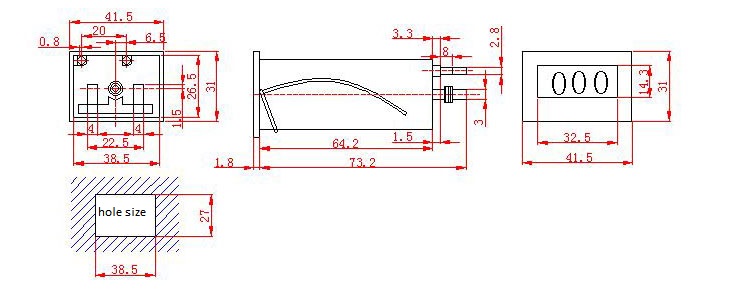

Installation method |
Clamp on the panel with springs or fix the tail with screws |
