  • Categories:Capacitive Proximity Sensor
  • MOQ:1
  • Brand:Trihero
  • FOB Port:Shanghai port, Ningbo port
  • Terms of Payment:Western Union, T/T, Paypal
  • Delivery Time:7 Working Days

Capacitive Proximity Sensor Switch CM18 Series

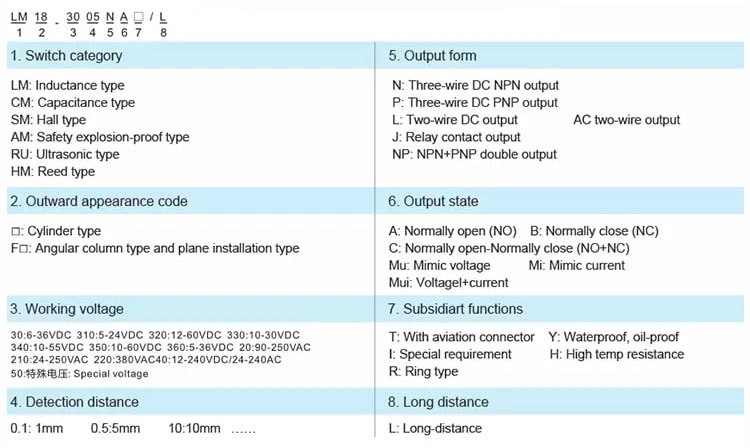

Models:

Switch category,Outward appearance code,Working voltage,Detection distance,Output form,Output state,Subsidiart functions,Long distance

Technical parameters:

Flush Detection range 0-5mm

DC 12-30V

AC 90-250V

NPN NO CM18-3005NA
NC CM18-3005NA
NO+NC CM18-3005NC
PNP NO CM18-3005PA
NC CM18-3005PB
NO+NC CM18-3005PC
SCR controllable silicon NO CM18-2005A
NC CM18-2005B
NO+NC
Relay output
Non-flush Detection range 0-8mm

DC 12-30V

AC 90-250V

NPN NO CM18-3008NA
NC CM18-3008NB
NO+NC CM18-3008NC
PNP NO CM18-3008PA
NC CM18-3008PB
NO+NC CM18-3008PC
SCR controllable silicon NO CM18-2008A
NC CM18-2008B
NO+NC
Relay output
Detectable object Conductor and dielectric body
Output voltage drop DC/AC DC<3V, AC<7V
Consumption current DC<15mA, AC<10mA
Output current DC: 200mA, AC: 300mA
DC/AC DC 500Hz , AC 10Hz
Working environment temperature -25°C~+70°C
Insulation resistance 50MΩ
Material Metal / ABS Resin
Protection grade IP54

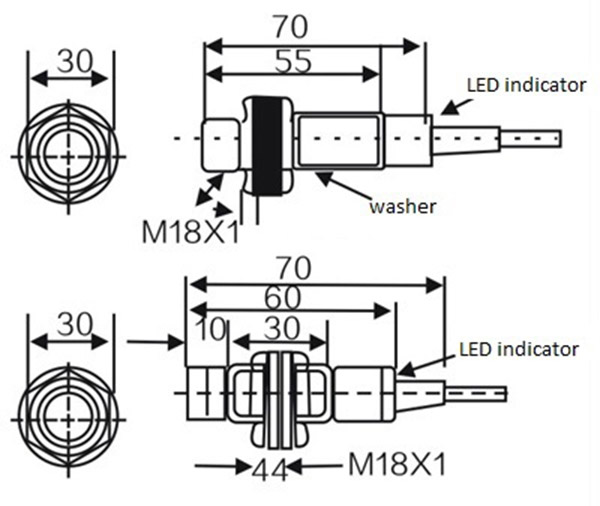

Dimensions:

CM18 Capacitive proximity sensor 11
