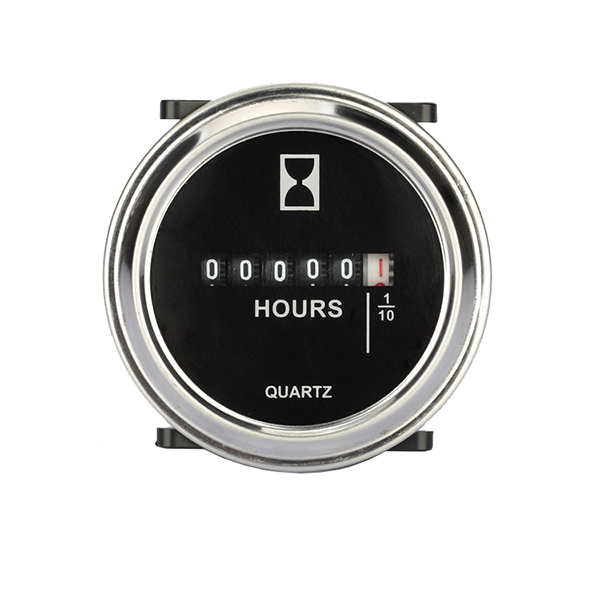

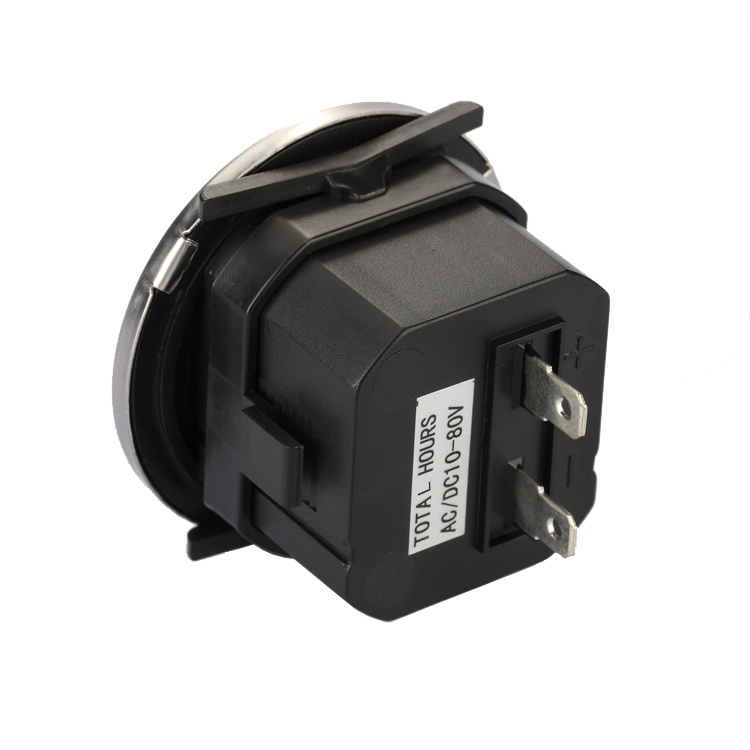

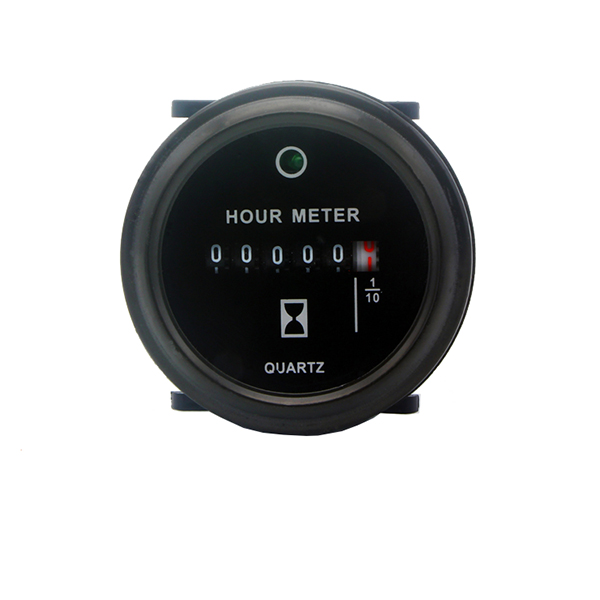

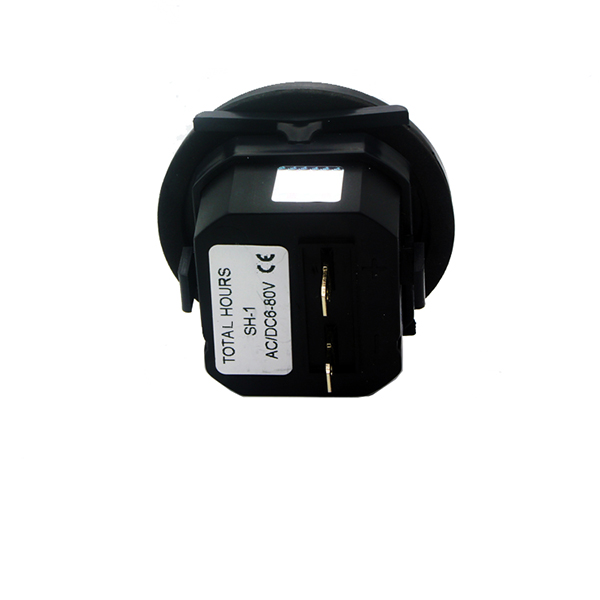

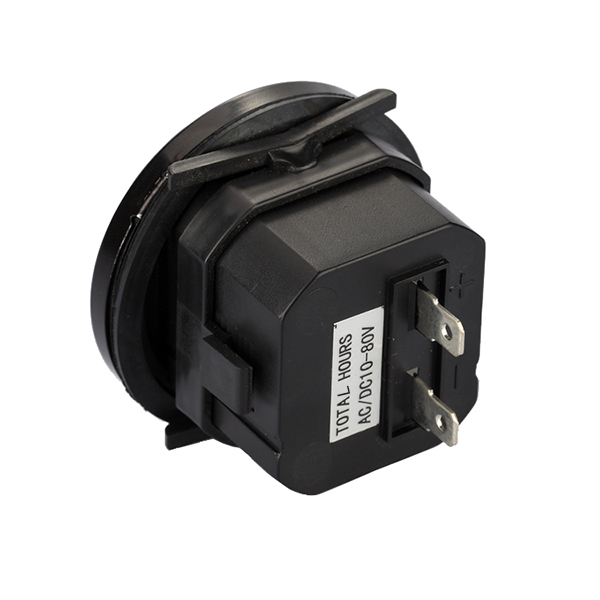

SH-1 quartz electronic sealed timer, novel structure, dexterity, high precision, stable and reliable performance, long life, wide adaptability to the environment, low price, easy to use. It is widely used in engineering machinery, engineering vehicles, agricultural machinery, generators, air compressors, water pumps, cranes, cranes, various types of automobiles, etc.
Technical parameters:
|
Timing range |
9999.60 (hour) 99999.9 (hours) |
|
Timing accuracy |
±0.01 |
|
Zero reset device |
No reset |
|
Voltage type |
6V-80V (for AC and DC), 90V-130V, 180V-240V |
|
power |
0.3W |
|
Operating temperature |
-10℃~50℃ |
|
Relative humidity |
Fully sealed |
|
Seismic amplitude |
10~70HZ 1~8g (Gravity) |

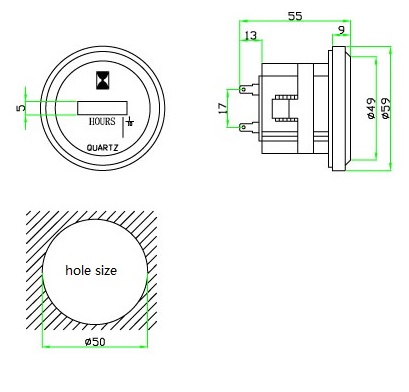

Installation size:
