Working principle and Application:

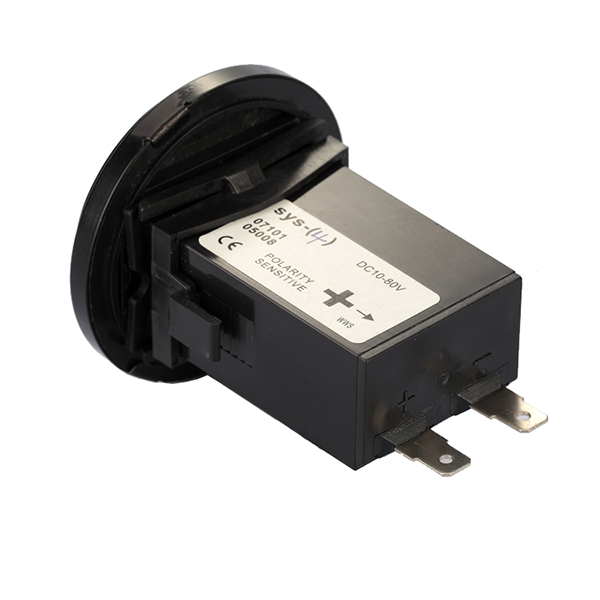

SYS-4 fully sealed electronic mechanical hour meter has novel structure, dexterity, high precision, stable and reliable performance, long life, wide adaptation to the environment, low price, and convenient use. It is most suitable for standard industrial timekeeping, and is widely used in construction machinery, construction vehicles, agricultural machinery, generators, air compressors, water pumps, cranes, cranes, various types of automobiles, etc.
Main technical parameters:
|
Timing range |
99999.9 (hours) |
|
Timing accuracy |
±0.01 |
|
Zero reset device |
No reset |
|
Voltage type |
10~80VDC, 100~250VAC |
|
Work rate |
0.3W |
|
Operating temperature |
-10℃~50℃ |
|
Seismic amplitude |
10~70HZ 1~8g (degree of gravity) |

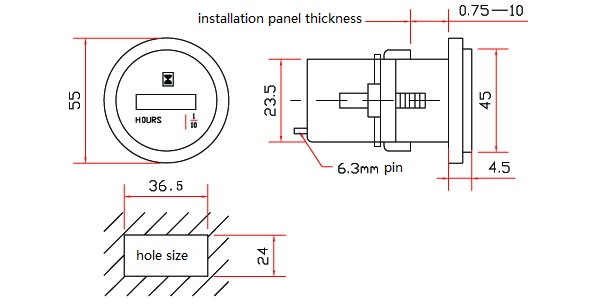

Installation size:
