Scope of application:
The hour meter is fully sealed, with novel structure, dexterity, high precision, stable and reliable performance, long life, wide adaptability to the environment, low price, and convenient use. It is most suitable for standard industrial timekeeping, and is widely used in construction machinery, construction vehicles, agricultural machinery, generators, air compressors, water pumps, cranes, cranes, various types of automobiles, etc.
Specification parameter table:
1. Name: quartz mechanical timer
2. Model: TH-1
3. Timing range: 99999.99 (hours)
4. Timing accuracy: ±0.01
5. Zero reset device: no reset
6. Voltage type: 10V-60V (for both AC and DC) AC220-240V
7. Power: 0.3W
8. Operating temperature: -10℃~50℃
9. Relative humidity: fully sealed
10. Seismic amplitude: 10-70HZ 1-8g (degree of gravity)

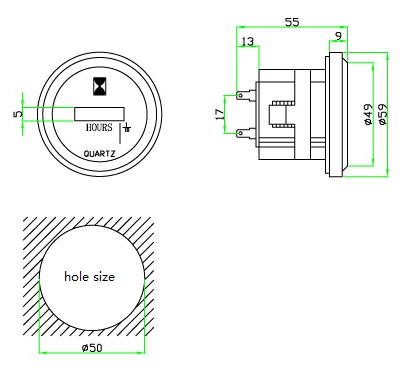

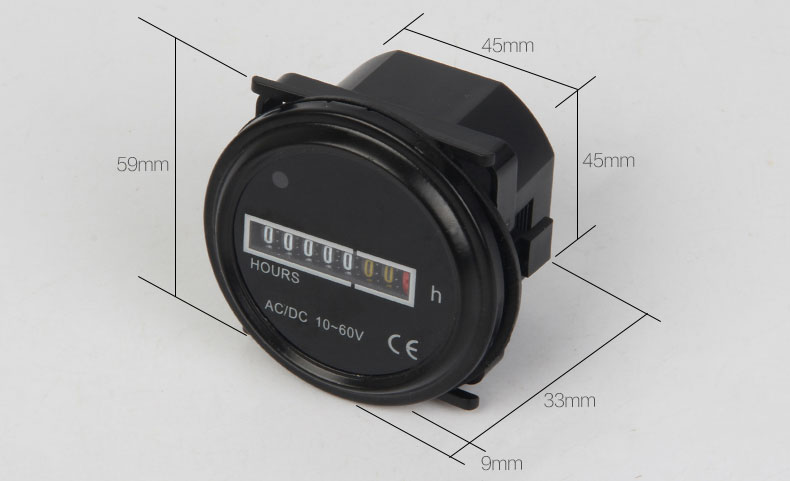

Installation size:
