XMF37 Inductive Proximity Sensor

XMF37 Inductive Proximity Sensor
XMF37 Inductive Proximity Sensor
  • Categories:Linear Sensor
  • MOQ:1
  • Brand:Trihero
  • FOB Port:Shanghai port, Ningbo port
  • Terms of Payment:Western Union, T/T, Paypal
  • Delivery Time:7 Working Days

XMF37 Inductive Proximity Sensor

Detectable object

Metal

Detection distance

Flush type:15mm

Non-Flush:20mm

Model available Current type

XM37-3015PMI

XM37-3020PMI

Voltage type

XM37-3015PMU

XM37-3020PMU

Voltage range

15~30VDC

Consumption at the time of detection

≤200mA…<4mA

atfhe time of non-detection

≤20mA

 Loading
  resistance
Current type

0~300Ω

Voltage type

≥2.2KΩ

Output Current type

4~20mA

Voltage type

0-5V/0-10V

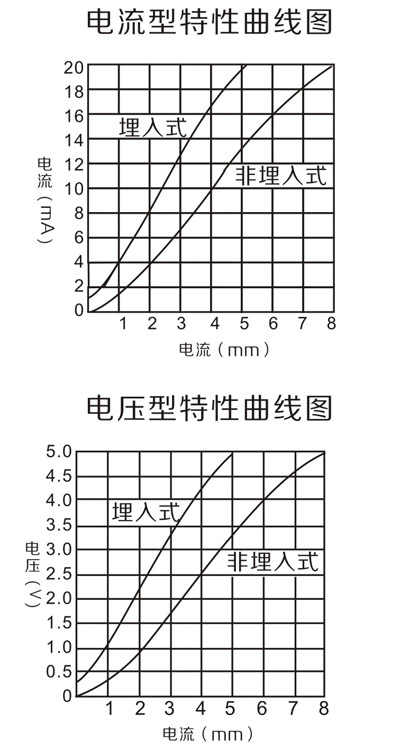

Output characteristic diagram

Output characteristic diagram

Voltage fluctuation

≤5%

Output signal

PNP Simulation

Linear deviation

±5%

Ambient temperature

-10℃~+70℃

Shell material

Plastic,Metal

Protection grade

lp54
