XMF38 Inductive Linear Proximity Sensor

XMF38 Inductive Linear Proximity Sensor
XMF38 Inductive Linear Proximity Sensor
  • Categories:Linear Sensor
  • MOQ:1
  • Brand:Trihero
  • FOB Port:Shanghai port, Ningbo port
  • Terms of Payment:Western Union, T/T, Paypal
  • Delivery Time:7 Working Days

XMF38 Inductive Linear Proximity Sensor

Detectable object

Metal

Detection distance

Flush type:40mm

Non-Flush:50mm

Model available Current type

XM38-3040PMI

XM38-3050PMI

Voltage type

XM38-3040PMU

XM38-3050PMU

Voltage range

15~30VDC

Consumption at the time of detection

≤200mA…<4mA

atfhe time of non-detection

≤20mA

Loading
  resistance
Current type

0~300Ω

 Voltage type

≥2.2KΩ

Output Current type

4~20mA

Voltage type

0-5V/0-10V

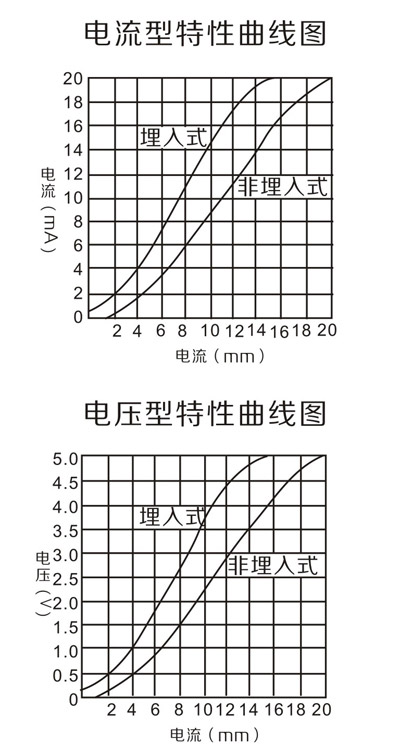

Output characteristic diagram

Output characteristic diagram

Voltage fluctuation

≤5%

Output signal

PNP Simulation

Linear deviation

±5%

Ambient temperature

-10℃~+70℃

Shell material

Plastic,Metal

Protection grade

lp54
