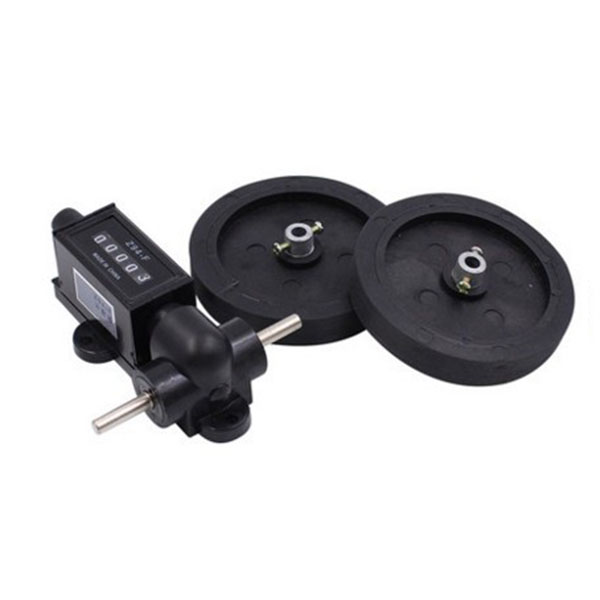

The Z94-F five-digit length measuring counter is a counter used to measure length and various mechanical transmissions. It is generally used for recording the length of textiles, printing and dyeing, plastic films, and artificial leather.
(1) This counter is a five-digit number. When the record length is 1m (or 1 yard), the wheel rotates three times, the counter number displays 1, and so on, every decimal. But it cannot count backwards.
(2) This counter is equipped with a zero reset mechanism, the zero reset adopts a rotary type, the numbers for one revolution are all "0", and then the second stage counts.
Technical parameter:
|
Counting range |
0-99999 |
|
Rotation ratio |
1: 3 |
|
Maximum counting speed |
200 times/min |
|
temperature range |
-10 degrees-60 degrees |
