Working principle and use:
The D94S small six-digit pull counter is used to accumulate and record the number of reciprocating movements of the instrument or machine. Connect the auxiliary axis of the counter to the instrument or machine to perform the pulling count. Digital direct reading display, and there is a turning back to zero device, after returning to zero, it can still count up from zero.
D94S small six-digit pull counter is mainly used in textile, machinery, mine, printing, large stamping, conveying and other industries.
Technical parameter:
|
Display digital specifications |
4.4x3mm(HxW) |
|
Maximum integration capacity |
000000~999999 |
|
Transmission ratio |
1: 1 |
|
Torque |
8NGm |
|
Pull angle (right shaft swings right) |
38~43 degrees |
|
Counting speed |
500 times/min |
|
Weight |
About 80G |
|
Return to zero |
rotation type |

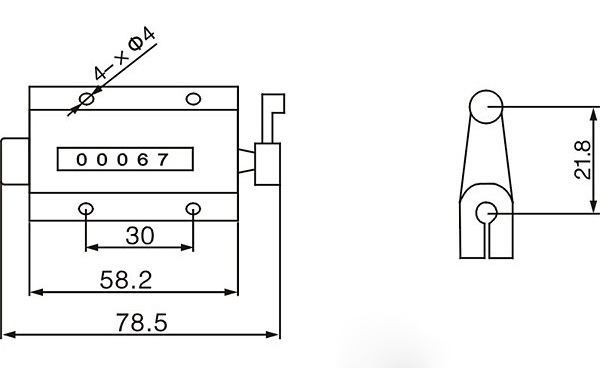

Dimensions:
