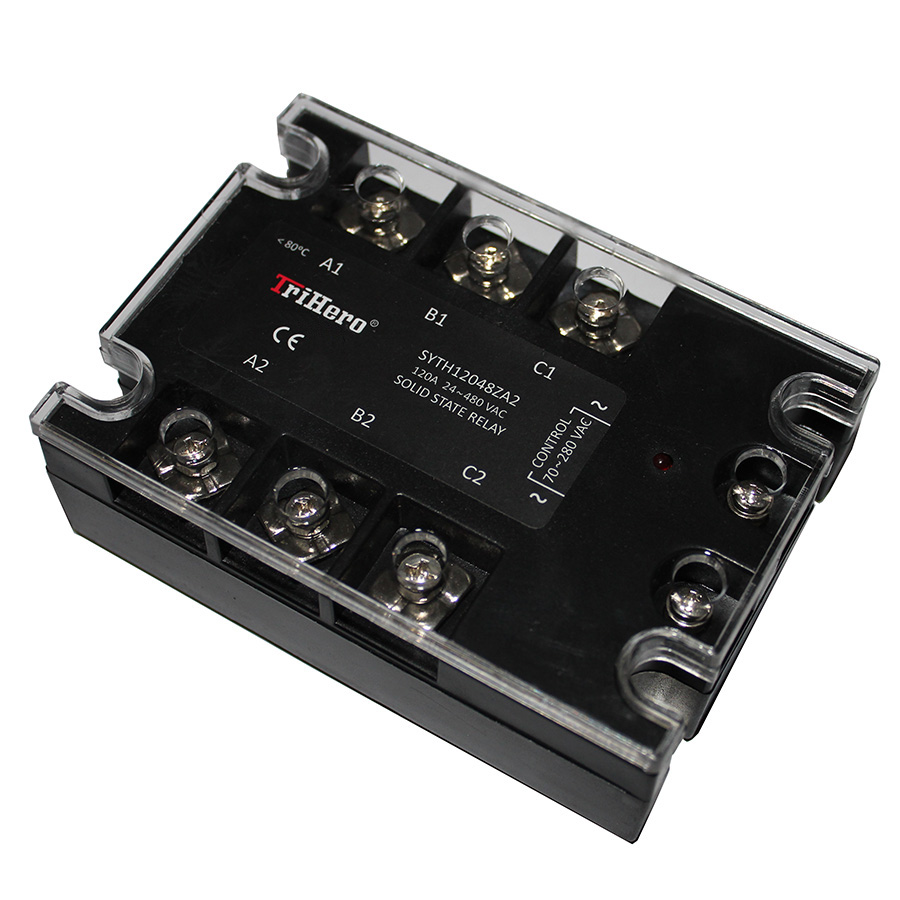

Three-Phase SSR solid state relay


● Dielectric strength 4000V

● Photo isolation

● Zero cross or random turn-on

● Removable finger proof cover available

● Load current 10-120A

● Panel mount

● Control voltage 3-32Vdc, 70-280Vac

● Built-in RC

Models explanation:

Three Phase AC SSR 2

1. SY – design code

SYDH – single-phase solid state relay (10 – 120А)

SYDM – industrial class solid state relay (100 – 500А)

SYTH – three-phase solid state relay (10 – 120А)

SYTR – motor reversing solid state relay (10 – 40А)

2. 40 – load current 40А (10 – 500А)

3. 48 – load voltage 24-480V AC, 38 – 24-380V AC, 23 – 5-220V DC

4. ZD3 – control signal type(swithing mode)

VA – variable resistor 220-560кОм/2Вт (phase control)

LA – analog signal 4-20мА (phase control)

VD – analog signal 0-10V DC (phase control)

ZD – control voltage 10-30V DC (switching at zero crossing)

ZD3 – control voltage 3-32V DC (switching at zero crossing)

ZA2 – control voltagte 70-280V AC (switching at zero crossing)

DD3 – control voltage 3-32V DC (DC voltage switching)


Load voltage Control voltage Rated current
10A 25A 40A
480V AC 3-32V DC SYTH1048ZD3 SYTH2548ZD3 SYTH4048ZD3
70-280V AC SYTH1048ZA2 SYTH2548ZA2 SYTH4048ZA2
Load voltage Control voltage Rated current
60A 80A 100A 120A
480V AC 3-32V DC SYTH6048ZD3 SYTH8048ZD3 SYTH10048ZD3 SYTH12048ZD3
70-280V AC SYTH6048ZA2 SYTH8048ZA2 SYTH10048ZA2 SYTH12048ZA2

Technical specifications:

Items SYTHxxxxxZD3 SYTHxxxxxZA2
Load voltage 24-480V AC
Control voltage 3-32V DC 70-280V AC
Current consumption in control circuit 10-68mA ≤12mA
Voltage ON/OFF 3V DC/1.5V DC 70V AC/10V AC
Peak voltage 1000V AC
Voltage drop in load circuit ≤1.6V AC
Leakage current(off-state) ≤10mА
Switching time ≤10ms
LED indication yes
Dielectric strength 2500V AC (1min)
Insulation resistance 500МОм with 500V DC
Operating temperature -30…+75°C
Relative humidity ≤95%; (non-condensing)
Dimensions 105х74х33mm
Mounting method Screws on
Weight ≤450g

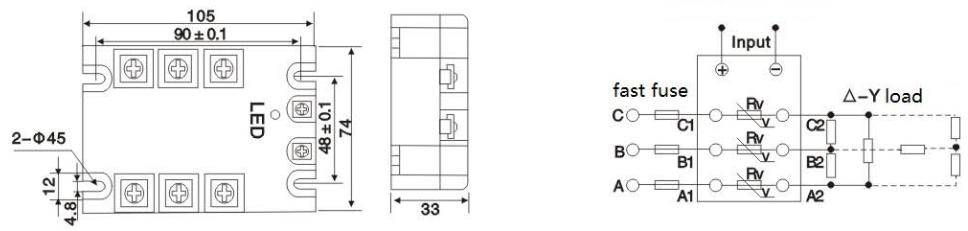

Outline dimensions & Wiring diagram:
