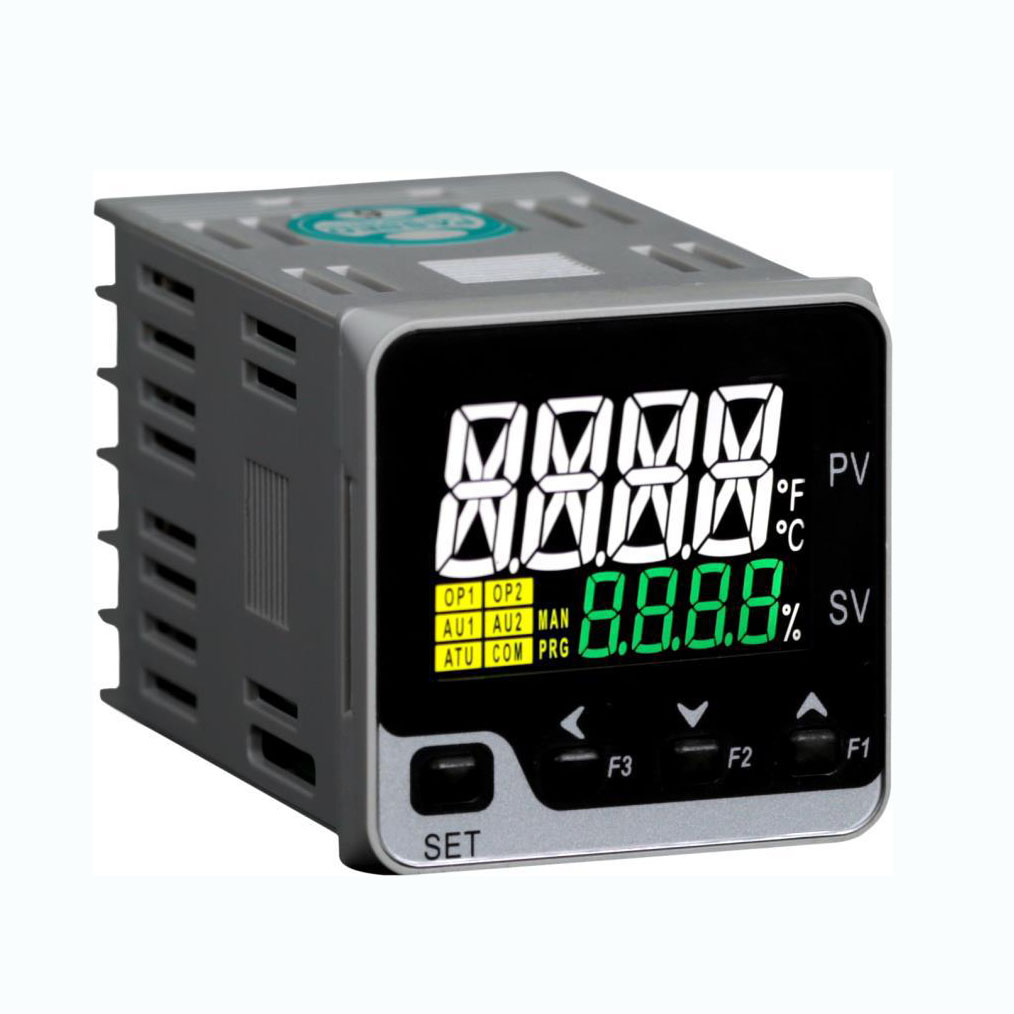

TX LCD display digital temperature controller
The TX series temperature controllers feature easy-to-read LCD displays with large, white PV characters. The 11-segment displays used for PV and SV are useful for displaying various alphanumeric characters and provide improved legibility. The temperature controllers also feature 50 ms high-speed sampling cycle and ±0.3% display accuracy. The space-saving design with 45 mm depth allows easy installation in limited spaces (DIN 48 x 48 mm models). The TX series can be configured and monitored on PCs via USB or RS485 communication, and are available in diverse sizes for flexible installation in various environments.

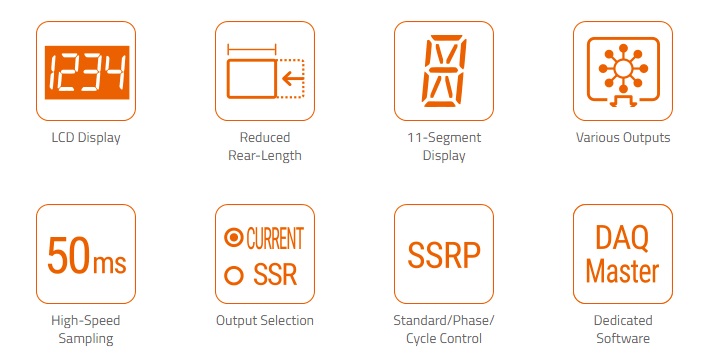

Main features:
· The faceplate design has been upgraded on all models

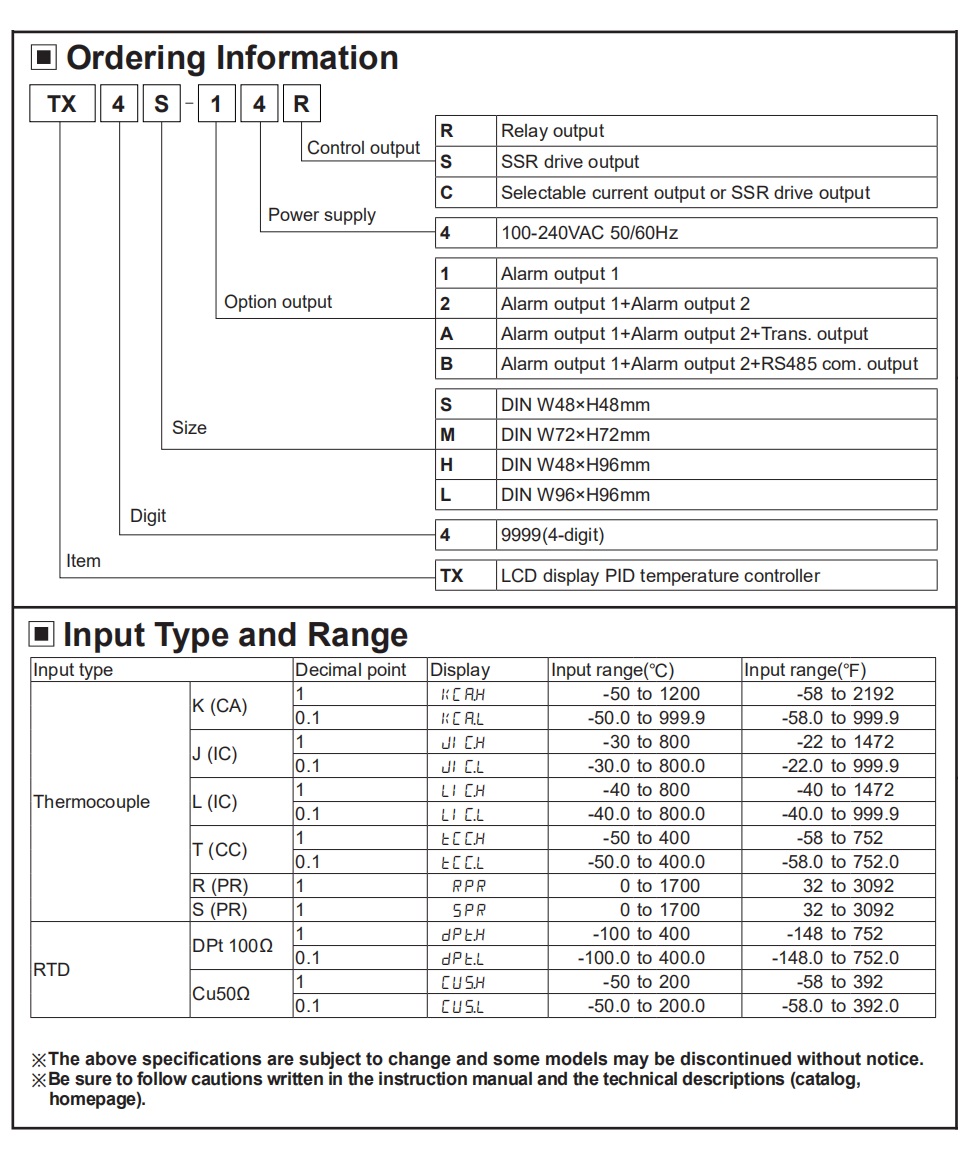

· New sizes have been added to the line-up: W 72 x H 72 mm (TX4M), W 48 x H 96 mm (TX4H), W 96 x H 96 mm (TX4L)
1. 50ms high-speed sampling rate and ±0.3% display accuracy
2. Large LCD display with easy-to-read white PV characters
3. Switch between current output and SSR drive output
4. SSR drive output (SSRP function) control options : ON/OFF control, cycle control, phase control
5. Communication output model available : RS485 (Modbus RTU)
6. Parameter configuration via PC (RS485 communication) : DAQMaster software included (comprehensive device management software)
7. Compact, space-saving design with 45mm depth : 30% rear-length size reduction compared to similar-sized (48×48mm) models from Autonics

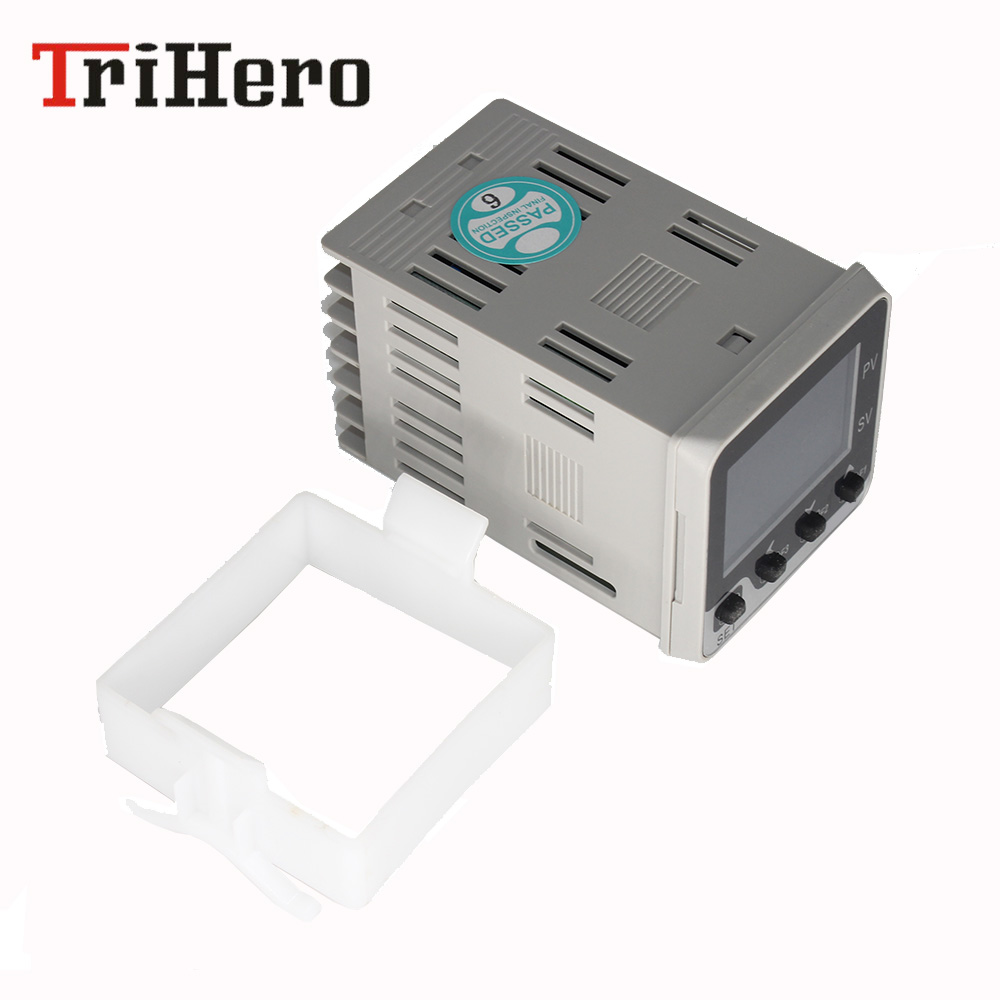

*Terminal protection cover sold separately : RSA-COVER

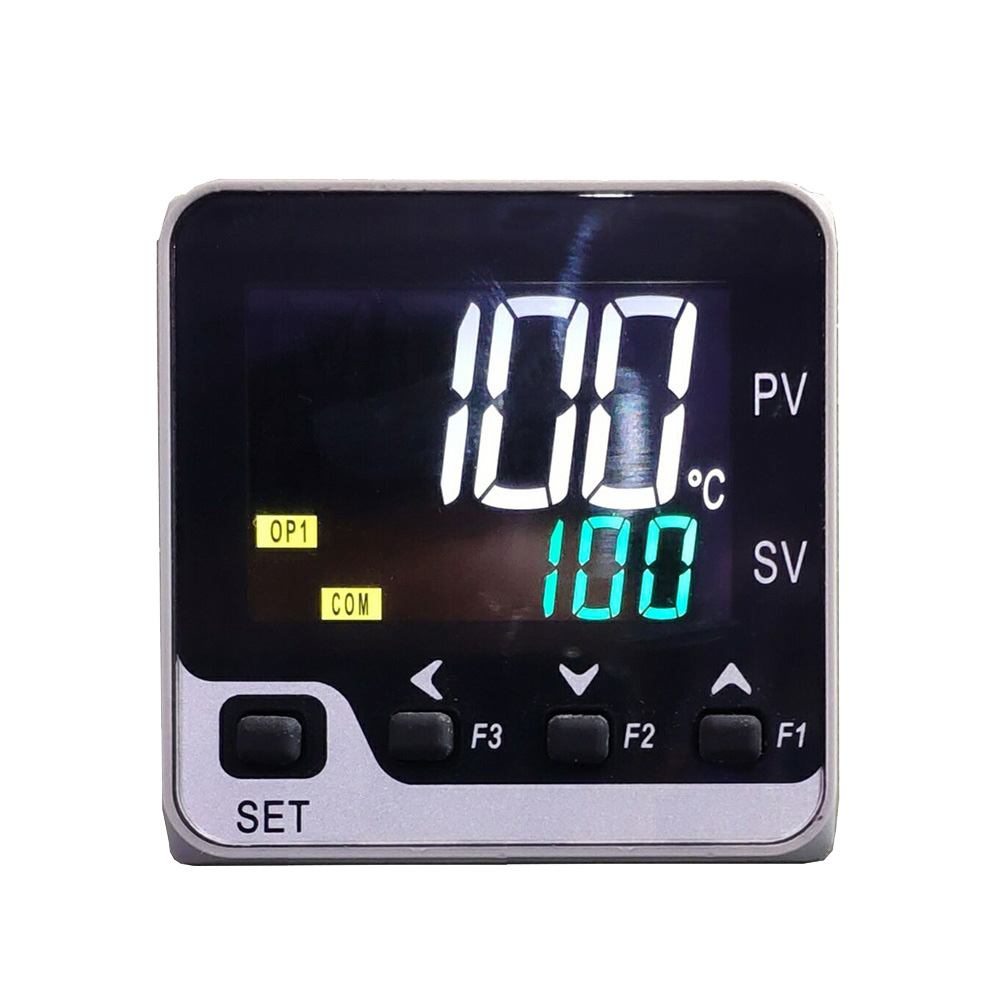

Large LCD Display with Easy-to-Read White PV Characters
Large LCD display with 15.3mm white PV characters provides high visibility in various environments.
*PV character height: TX4S 14 mm, TX4M 17.3 mm, TX4H 15.8 mm, TX4L 26.8 mm
