Dual Thermostat ZR 011

● No and Nc in one casing

● Separate adjustable temperatures

● High switching capacity

● Terminals easily accessible

● Clip fixing


Two thermostats in one casing:

Thermostat (contact breaker, normally closed) for regulating heaters.

Thermostat (contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded.

Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.



Service life > 100 000 cycles
Max. switching capacity 250VAC, 10 (2) A

120VAC, 15 (2) A

DC 30W
Connection 4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm²,
stranded wire (with wire end ferrule) 1.5mm²
Mounting clip for 35mm DIN rail, EN60715
Casing plastic according to UL94 V-0. light grey

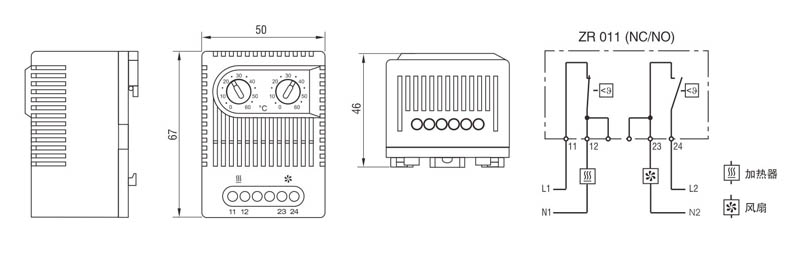

Dimensions 67 x 50 x 46mm
Weight approx. 90g
Fitting position variable
Operating/Storage temperature -45 to +80°C (-49 to +176°F)
Operating / Storage humidity max. 90 % RH (non-condensing)
Protection type IP20
Approvals UL File No. E164102
