● High DC breaking capacity
● Low hysteresis
● Adjustable temperature
● Change-over contact
● Clip fixing

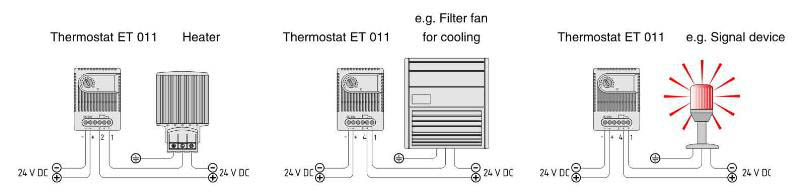

Electronic thermostat for regulating high performance DC 24V equipment. Heating or cooling appliances as well as signal devices can be switched via the potential free change-over contact. In comparison to mechanical thermostats, the ET 011 has a low hysteresis making the switching point and setting accuracy more precise.
| Switch temperature difference | Approx. 3K |
| Sensor element | PTC |
| Contact type | change-over |
| Service life | > 100 000 cycles |
| Max. switching capacity | 28VDC, 16A |
| Connection | 5-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 67 x 50 x 46mm |
| Weight | approx. 80g |
| Fitting position | vertical |
| Operating/Storage temperature | 0 to +60°C (+32 to +140°F) / -45 to +80°C (-49 to +176°F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type | IP20 |
| Approvals | - |
