Small size
● Default temperature settings
● Easy to install
● High switching tolerance

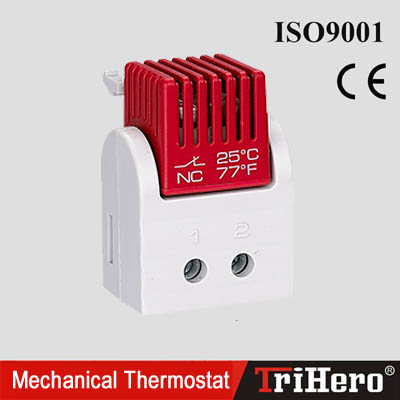

Tamperproof (Pre-set) Thermostat FTO 011

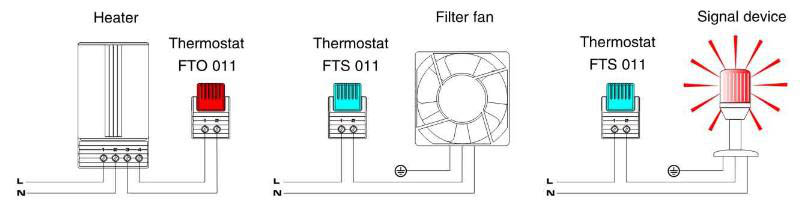

Contact breaker /NC (red casing) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The contact opens when temperature is rising.
Tamperproof (Pre-set) Thermostat FTS 011
Contact maker /NO (blue casing) for regulating filter fans, heat exchangers, cooling devices or for switching signal devices when temperature limit has been exceeded. The contact closes when temperaure is rising.
| Sensor element | Thermostatic bimetal |
| Contact type | snap-action contact |
| Service life | > 100,000 cycles |
| Max. switching capacity | 240V AC, 5 (1.6)A |
| 120 VAC, 10 (2)A | |
| DC 30W | |
| Max. inrush current | AC 10A |
| Connection | 2-pole terminal for 2.5mm², torque 0.8Nm max. |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 47 x 33 x 33mm |
| Weight | approx. 30g |
| Fitting position | variable |
| Operating/Storage temperature | -40 to +80°C (-40 to +176°F) / -45 to +80°C (-49 to +176°F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Prot. type | IP20 |
| Approvals | VDE + UL File No. E164102 |
