CSK4 CSK5 CSK6 Electro Magnetic Counters
The CSK series electromagnetic counters are used to record the cumulative number of electric pulse signals.
Can be combined with the secondary instrument digital display instrument, widely used in petroleum, chemical, textile, machinery, mining, national defense, agriculture, food, printing and other industries of all kinds of electrical pulse counting.
After the electrical signal is input to the counter, the electromagnet generates suction, which makes the armature drive the escapement mechanism and drives the digital wheel to rotate for decimal counting.
Technical parameters:
| Counting range | 0-9999, 0-99999, 0-999999 |
| Voltage types |
DC9V, DC12V, DC24V, DC110V,DC220V; AC9V,AC12V,AC24V,AC110V,AC220V |
| Voltage fluctuation range | ±10% |
| Counting speed | 20times/sec(DC voltage), 10times/sec(AC voltage) |
| Display value error | < 1x0.00001 |
| Ambient temperature | -20°C~50°C, RH≤85% |
| Power | DC 1.5W, AC 2.5VA |
| Reset to zero | push back to zero(with lock) |
| Insllation type | Panel mount |
Dimensions:

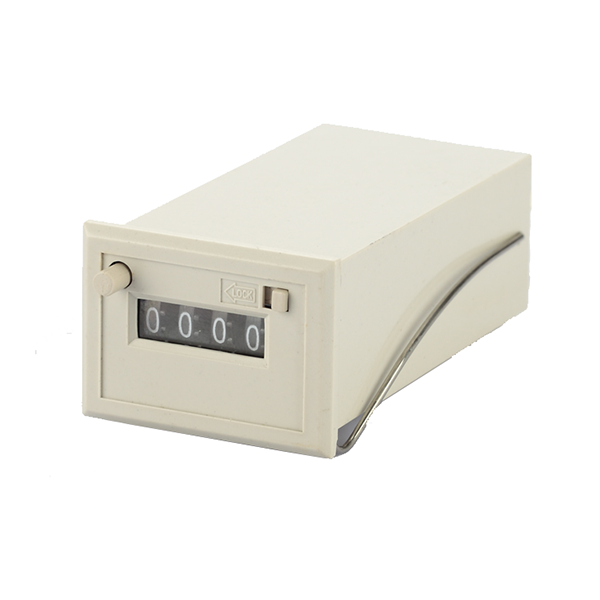

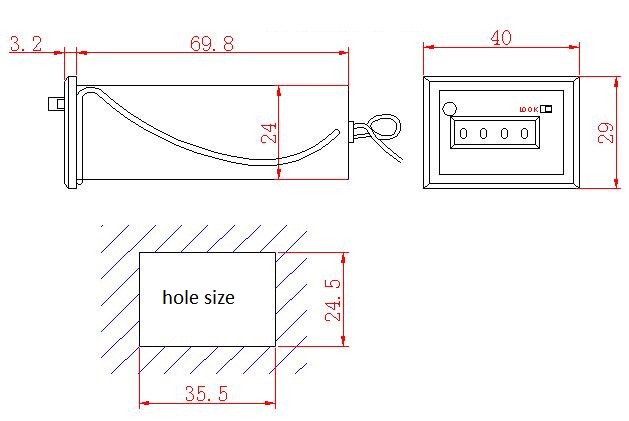

CSK4-NKW

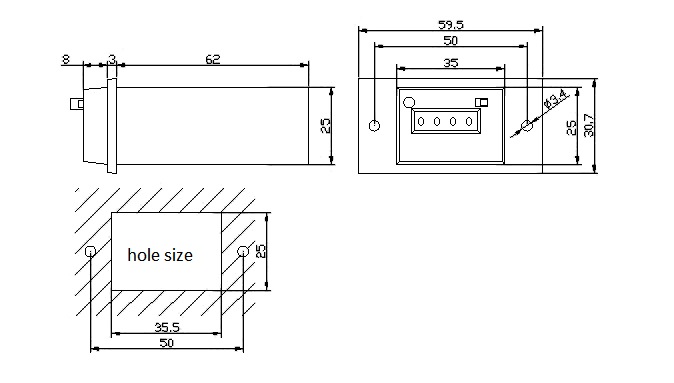

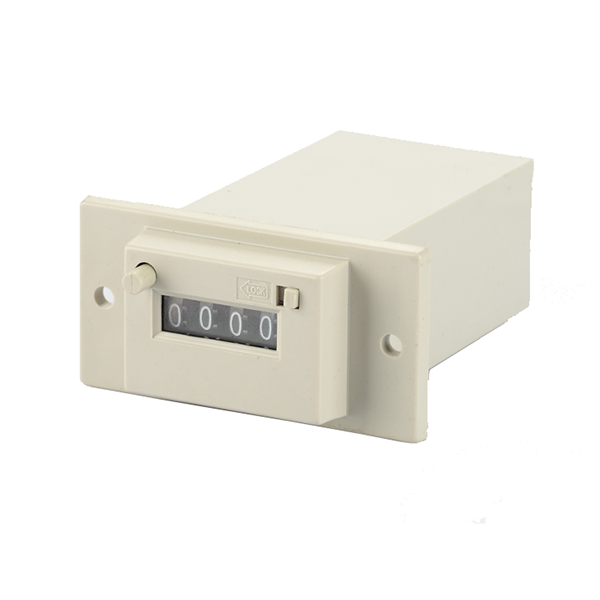

CSK4-YKW

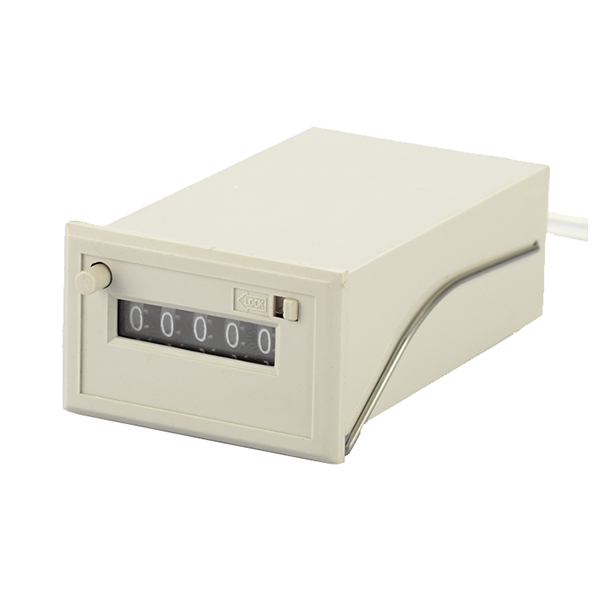

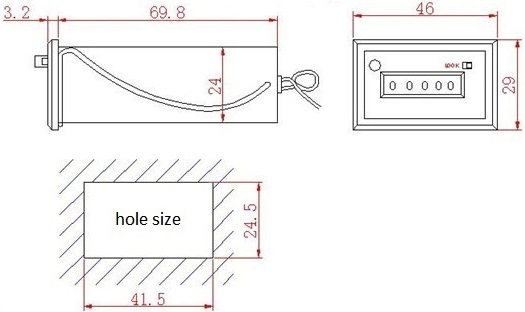

CSK5-NKW

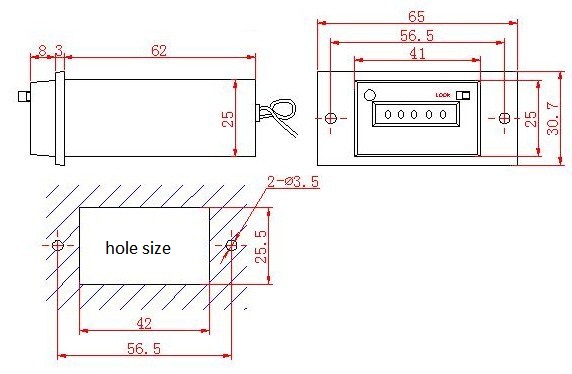

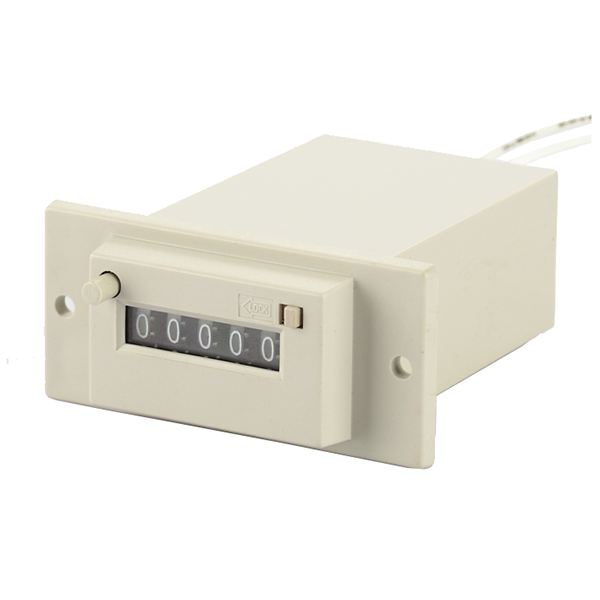

CSK5-YKW

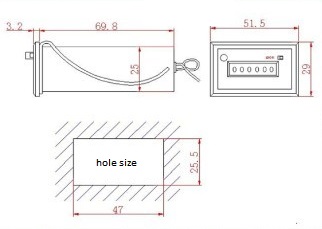

CSK6-NKW

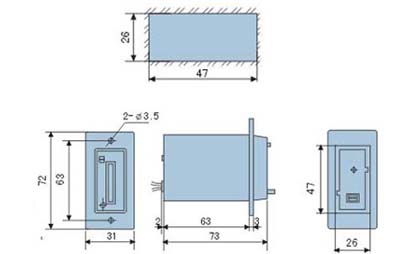

CSK6-YKW
