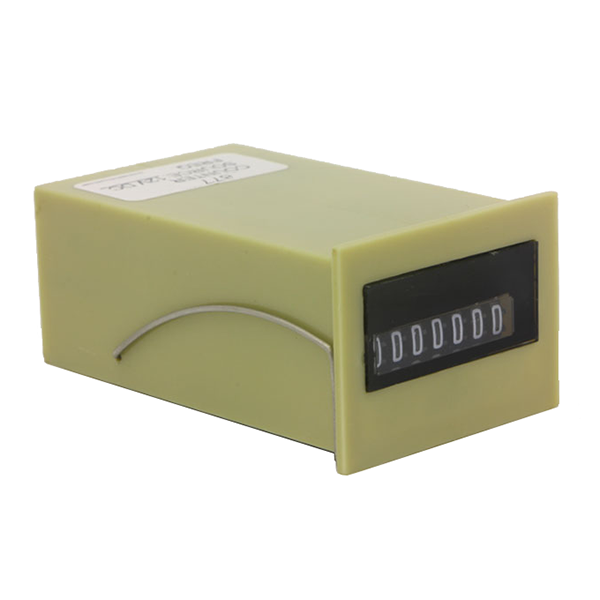

JSU-877 electromagnetic counter
Working principle and application:
The seven-digit electromagnetic counter produced by our company is used to record the cumulative number of electrical pulse signals. It can be combined with a secondary instrument to form a digital display instrument, which is widely used in various electrical pulse counting in various industries such as petroleum, chemical industry, textile machinery, mining, national defense, agriculture, food, printing and so on. After the electric signal is input to the counter, a suction force is generated in the electromagnet, which causes the armature to drive the escapement and drives the number wheel to rotate for decimal counting.
Technical parameter:
| Counting range | 0-9999999 |
| Voltage type | DC6V, DC12V, DC18V, DC24V, DC36V, DC48V, DC110V, DC220V, AC24V, AC36V, AC48V, AC110V, AC220V |
| Voltage fluctuation range | ±10% |
| Counting speed | DC: 20 times/sec, AC: 10 times/sec |
| Indication error | <1X0.00001 |
| Operating environment temperature | -20°C~50°C, RH: ≤85% |
| Power | DC: 1.5W, AC: 2. 5VA |
| Reset | press to return to zero |

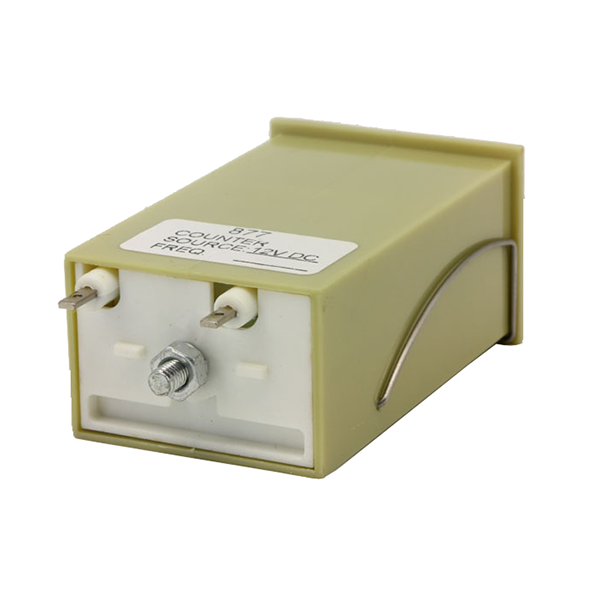

| Installation method | clamp on the panel with springs or fix the tail with screws |
