Working principle and use:
The JSI-748 series of quartz electronic fully sealed timers have novel structure, dexterity, high precision, stable and reliable performance, long life, wide adaptation to the environment, low price and easy use. It is most suitable for standard industrial timekeeping, and is widely used in construction machinery, construction vehicles, agricultural machinery, generators, air compressors, water pumps, cranes, cranes, various types of automobiles, etc.
Main technical parameters:
|
Timing range |
0~99999.9 (hour) |
|
Timing accuracy |
±0.01 |
|
Zero reset device |
No reset |
|
Voltage type |
12-36V (AC and DC universal), 100-250V 10-80V |
|
Operating temperature |
-10℃~50℃ |

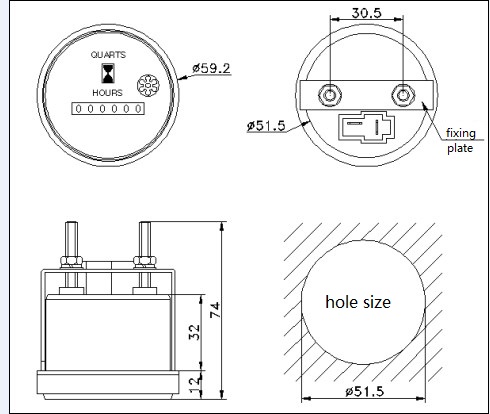

Dimensions:
