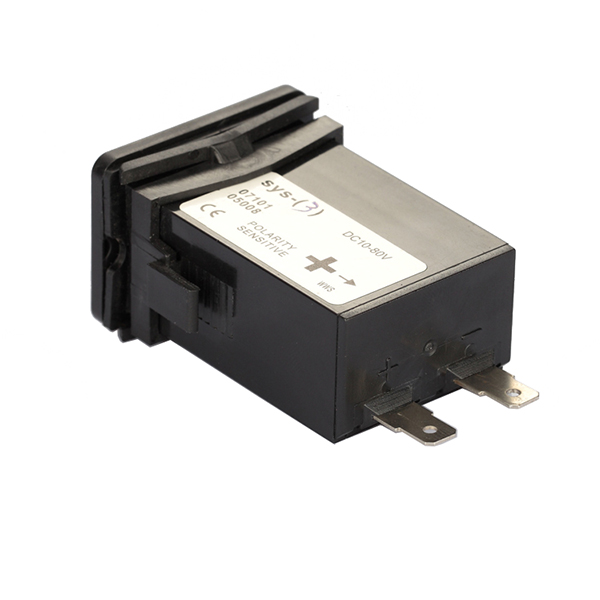

SYS-3 Fully Sealed Electronic Mechanical Timer

SYS-3 Fully Sealed Electronic Mechanical Timer
SYS-3 Fully Sealed Electronic Mechanical Timer
SYS-3 Fully Sealed Electronic Mechanical Timer
  • Categories:Hour Meter
  • MOQ:1
  • Brand:Trihero
  • FOB Port:Shanghai port, Ningbo port
  • Terms of Payment:Western Union, T/T, Paypal
  • Delivery Time:7 Working Days

Working principle and application:

SYS-3 fully sealed electronic mechanical timer, novel structure, dexterity, high precision, stable and reliable performance, long life, wide adaptability to the environment, low price, easy to use. It is most suitable for standard industrial timekeeping, and is widely used in construction machinery, construction vehicles, agricultural machinery, generators, air compressors, water pumps, cranes, cranes, various types of automobiles, etc.

Main technical parameters:

Timing range

99999.9 (hours)

Timing accuracy

±0.01

Zero reset device

No reset

Voltage type

10-80VDC, 100-250VAC

Work rate

0.3W

Operating temperature

-10℃~50℃

Seismic amplitude

10-70HZ 1~8g (degree of gravity)

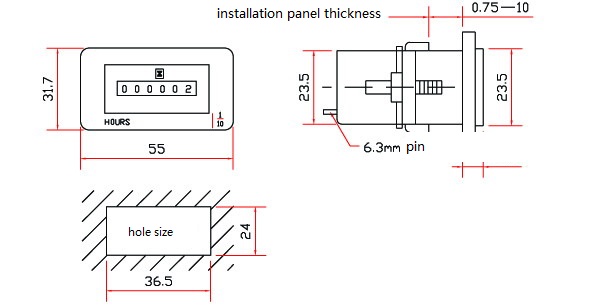

Installation size:

installation panel thickness
