THP58 Series Incremental Rotary Encoder

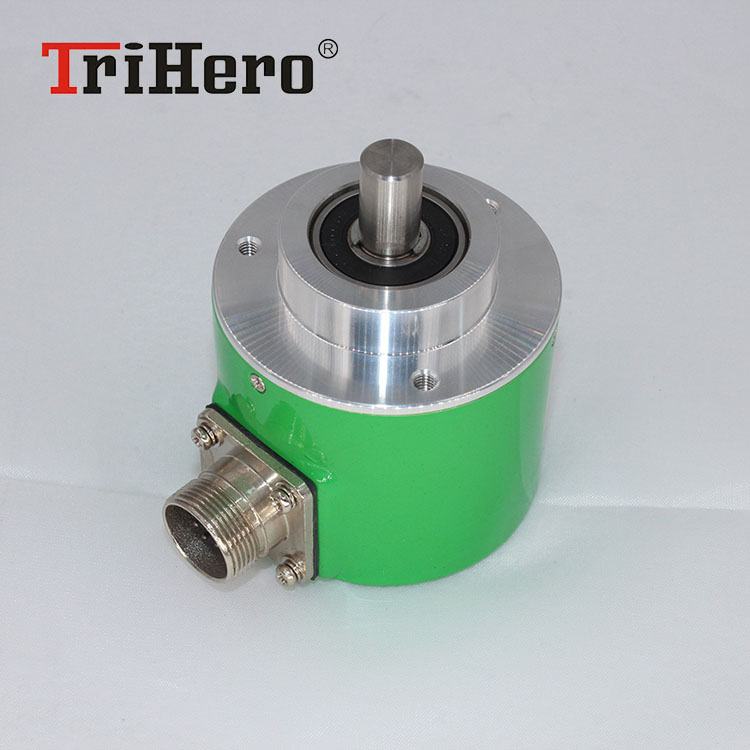

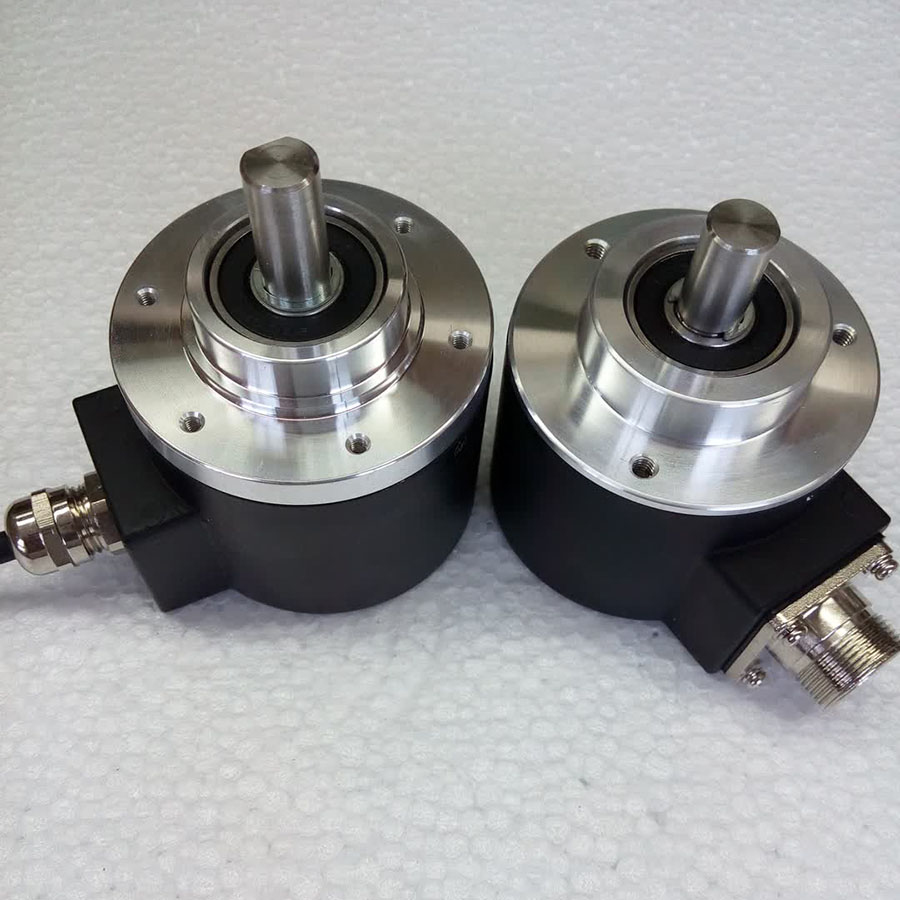

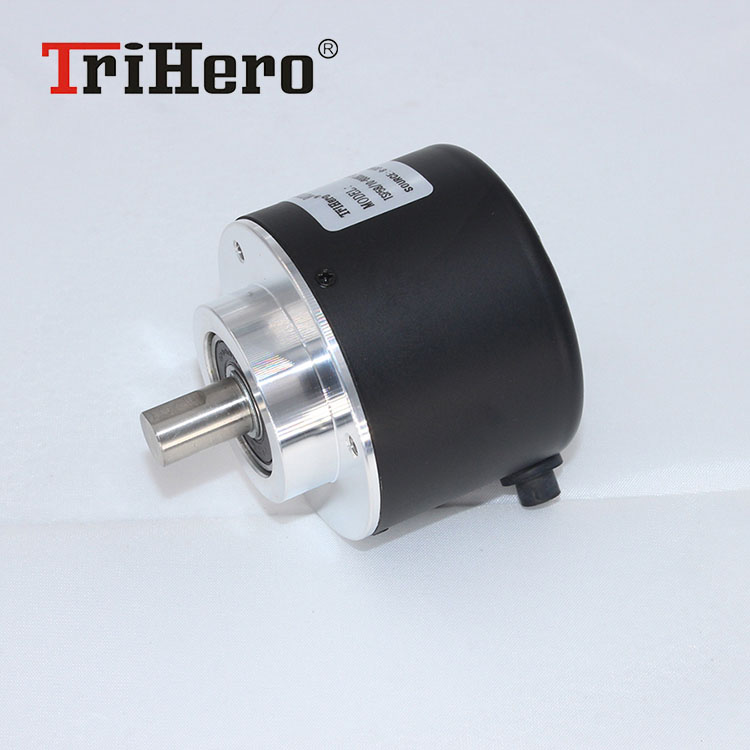

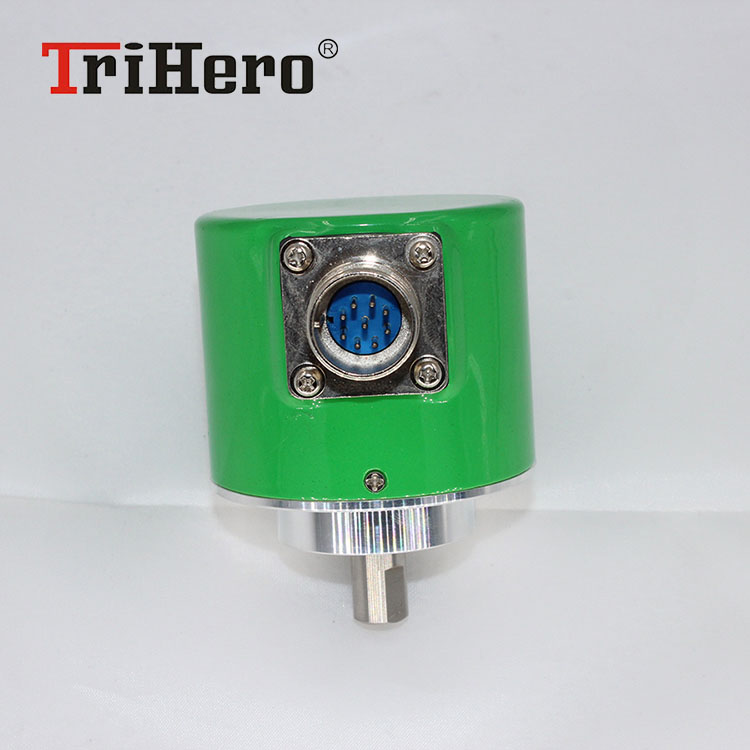

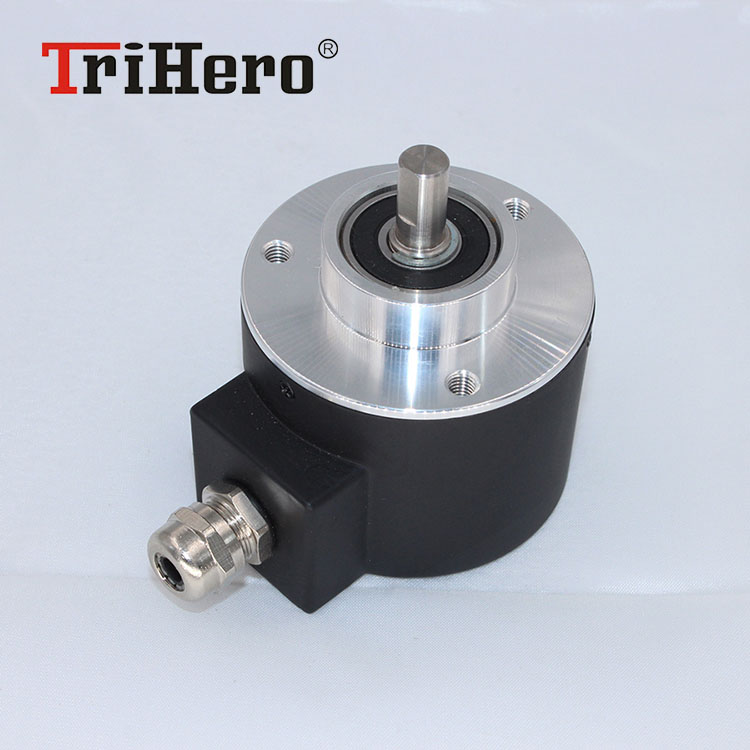

THP58 Series Solid Shaft Incremental Rotary Encoder

● Incremental Rotary Encoder
● External Diamter of 58mm
● Resolution up to 5400ppr
● Various output type
● Solid Shaft with Dia at 5/6/10mm
●Power supply: 5 VDC / 8-30 VDC
● Current consumption: 100mA(Load disconnected)
● Output:NPN/PNP open collector/Complementary/Voltage/Line Driver/Push-Pull(HTL with reverse signal)
●Frequency: 100K HZ Frequency=RPM*Resolution/60
● Shaft loading radial: 30N
● Shaft loading thrust: 40N
●Weight: Approxi 0.3KG
●Protection level: IP50
●Temperature: operation(-10C~+70C), storage(-30C~+85C)
●Vibration resistance: 50m/s, 10-65 HZ, 1 mm double amplitude for 2 hours each in X, Y, and Z directions
●Shock resistance:980m/s, 6m/s 2 times each in X, Y, and Z directions
●Starting torque:6 x 10-3 N.m Maximum

Guide of ordering:
